TIMP4 ELISA Kit (TIMP Metallopeptidase Inhibitor 4)

Details for Product TIMP4 ELISA Kit No. ABIN625101
Antigen
  • TIMP4
  • TIMP-4
  • timp4
  • TIMP metallopeptidase inhibitor 4
  • TIMP metallopeptidase inhibitor 4, tandem duplicate 3
  • tissue inhibitor of metalloproteinase 4
  • TIMP4
  • timp4.3
  • Timp4
Reaktivität
Human
Alternativen
Kits mit alternativen Reaktivitäten:
7
6
5
4
4
4
2
1
1
Nachweismethode
Colorimetric
Methodentyp
Sandwich ELISA
Detektionsbereich
25-7000 pg/mL
Untere Nachweisgrenze
25 pg/mL
Applikation
ELISA
Optionen
Verwendungszweck Human TIMP-4 ELISA Kit for cell culture supernatants, EDTA and/or Citrate treated plasma, and serum samples. Heparin is not recommended as an anticoagulant for use in this assay.
Proben Plasma, Cell Culture Supernatant, Serum
Analytische Methode Quantitative
Nachweismethode Colorimetric
Spezifität This ELISA kit shows no cross-reactivity with the following cytokines tested: human Angiogenin, BDNF, BLC, CNTF, ENA- 78, FGF-4, IL-1 alpha, IL-1 beta, IL-2, IL-3, IL-4, IL-5, IL-6, IL-7, IL-8, IL-9, IL-11, IL-12 p70, IL-12 p40, IL-13, IL-15, I-309, IP-10, FGF-4, FGF-6, FGF- 7, G-CSF, GDNF, GM-CSF, IFN-gamma, IGFBP-2, IGFBP-3, IGFBP-4, Leptin (OB), MCP-1, MCP-2, MCP-3, MDC, MIF, MIG, MIP-1 alpha, MIP-1 beta, MIP-1 delta, PARC, PDGF, RANTES, SCF, SDF-1 alpha, TARC, TGF-beta, TIMP-1, TIMP-2, TNF-alpha, TNF-beta, TPO, VEGF.
Sensitivität 25 pg/mL
Produktmerkmale
  • Strip plates and additional reagents allow for use in multiple experiments
  • Quantitative protein detection
  • Establishes normal range
  • The best products for confirmation of antibody array data
Bestandteile
  • Pre-Coated 96-well Strip Microplate
  • Wash Buffer
  • Stop Solution
  • Assay Diluent(s)
  • Lyophilized Standard
  • Biotinylated Detection Antibody
  • Streptavidin-Conjugated HRP
  • TMB One-Step Substrate
Benötigtes Material
  • Distilled or deionized water
  • Precision pipettes to deliver 2 μL to 1 μL volumes
  • Adjustable 1-25 μL pipettes for reagent preparation
  • 100 μL and 1 liter graduated cylinders
  • Tubes to prepare standard and sample dilutions
  • Absorbent paper
  • Microplate reader capable of measuring absorbance at 450nm
  • Log-log graph paper or computer and software for ELISA data analysis
Plasmids, Primers & others Plasmide, Primers & weitere TIMP4 products on genomics-online (e.g. as negative or positive controls)
Antigen
Andere Bezeichnung TIMP-4 (TIMP4 ELISA Kit Abstract)
Hintergrund The Human TIMP-4 ELISA (Enzyme-Linked Immunosorbent Assay) kit is an in vitro enzyme-linked immunosorbent assay for the quantitative measurement of human TIMP-4 in serum, plasma (collect plasma using EDTA and citrate as an anticoagulant. Heparin is not recommended), cell culture supernatants and urine. This assay employs an antibody specific for human TIMP-4 coated on a 96-well plate. Standards and samples are pipetted into the wells and TIMP-4 present in a sample is bound to the wells by the immobilized antibody. The wells are washed and biotinylated anti-human TIMP-4 antibody is added. After washing away unbound biotinylated antibody, HRP-conjugated streptavidin is pipetted to the wells. The wells are again washed, a TMB substrate solution is added to the wells and color develops in proportion to the amount of TIMP-4 bound. The Stop Solution changes the color from blue to yellow, and the intensity of the color is measured at 450 nm. Reproducibility: Intra-Assay: CV<10% Inter-Assay: CV<12%.
Gen-ID 7079
UniProt Q99727
Applikations-hinweise Recommended Dilution for serum and plasma samples5 - 50 fold
Probenmenge 100 μL
Plattentyp Pre-coated
Protokoll
  1. Prepare all reagents, samples and standards as instructed in the manual.
  2. Add 100 μL of standard or sample to each well.
  3. Incubate 2.5 h at RT or O/N at 4 °C.
  4. Add 100 μL of prepared biotin antibody to each well.
  5. Incubate 1 h at RT.
  6. Add 100 μL of prepared Streptavidin solution to each well.
  7. Incubate 45 min at RT.
  8. Add 100 μL of TMB One-Step Substrate Reagent to each well.
  9. Incubate 30 min at RT.
  10. Add 50 μL of Stop Solution to each well.
  11. Read at 450 nm immediately.
Aufbereitung der Reagenzien
  1. Bring all reagents and samples to room temperature (18 - 25°C) before use. 2. Sample dilution: Assay Diluent C (Item L) is used for dilution of serum/plasma samples, 1x Assay Diluent B (Item E) can be used for dilution of cell culture supernates/urine. 3. Assay Diluent B should be diluted 5-fold with deionized or distilled water before use. 4. Preparation of standard: Briefly spin the vial of Item C and then add 400 µl Assay Diluent C (for serum/plasma samples) or 1x Assay Diluent B (for cell culture supernates/urine) into Item C vial to prepare a 50 ng/ml standard. Dissolve the powder thoroughly by a gentle mix. Add 70 µl TIMP-4 standard (50 ng/ml) from the vial of Item C, into a tube with 430 µl Assay Diluent C or 1x Assay Diluent B to prepare a 7,000 pg/ml standard solution. Pipette 300 µl Assay Diluent C or 1x Assay Diluent B into each tube. Use the 7,000 pg/ml standard solution to produce a dilution series (shown below). Mix each tube thoroughly before the next transfer. Gently vortex to mix. Assay Diluent C or 1x Assay Diluent B serves as the zero standard (0 pg/ml). 5. If the Wash Concentrate (20x) (Item B) contains visible crystals, warm to room temperature and mix gently until dissolved. Dilute 20 ml of Wash Buffer Concentrate into deionized or distilled water to yield 400 ml of 1x Wash Buffer. 6. Briefly spin the Detection Antibody vial (Item F) before use. Add 100 µl of 1x Assay Diluent B into the vial to prepare a detection antibody concentrate. Pipette up and down to mix gently (the concentrate can be stored at 4°C for 5 days). The detection antibody concentrate should be diluted 80-fold with 1x Assay Diluent B and used in step 4 of Part VI Assay Procedure. 7. Briefly spin the HRP-Streptavidin concentrate vial (Item G) and pipette up and down to mix gently before use. HRP-Streptavidin concentrate should be diluted 35,000-fold with 1x Assay Diluent B. For example: Briefly spin the vial (Item G) and pipette up and down to mix gently . Add 2 µl of HRP-Streptavidin concentrate into a tube with 198 µl 1x Assay Diluent B to prepare a 100-fold diluted HRP- Streptavidin solution (do not store the diluted solution for next day use). Mix through and then pipette 40 µl of prepared 100-fold diluted solution into a tube with 14 ml 1x Assay Diluent B to prepare a final 35,000 fold diluted HRP-Streptavidin solution.
Testdurchführung
  1. Bring all reagents and samples to room temperature (18 - 25°C) before use. It is recommended that all standards and samples be run at least in duplicate. 2. Add 100 µl of each standard (see Reagent Preparation step 2) and sample into appropriate wells. Cover well and incubate for 2.5 hours at room temperature or over night at 4°C with gentle shaking. 3. Discard the solution and wash 4 times with 1x Wash Solution. Wash by filling each well with Wash Buffer (300 µl) using a multi-channel Pipette or autowasher. Complete removal of liquid at each step is essential to good performance. After the last wash, remove any remaining Wash Buffer by aspirating or decanting. Invert the plate and blot it against clean paper towels. 4. Add 100 µl of 1x prepared biotinylated antibody (Reagent Preparation step 6) to each well. Incubate for 1 hour at room temperature with gentle shaking. 5. Discard the solution. Repeat the wash as in step 3. 6. Add 100 µl of prepared Streptavidin solution (see Reagent Preparation step 7) to each well. Incubate for 45 minutes at room temperature with gentle shaking. 7. Discard the solution. Repeat the wash as in step 3. 8. Add 100 µl of TMB One-Step Substrate Reagent (Item H) to each well. Incubate for 30 minutes at room temperature in the dark with gentle shaking. 9. Add 50 µl of Stop Solution (Item I) to each well. Read at 450 nm immediately.
Ergebnisberechnung

Calculate the mean absorbance for each set of duplicate standards, controls and samples, and subtract the average zero standard optical density. Plot the standard curve on log-log graph paper or using Sigma plot software, with standard concentration on the x-axis and absorbance on the y-axis. Draw the best-fit straight line through the standard points.

Beschränkungen Nur für Forschungszwecke einsetzbar
Lagerung -20 °C
Informationen zur Lagerung The entire kit may be stored at -20°C for up to 1 year from the date of shipment. Avoid repeated freeze-thaw cycles. The kit may be stored at 4°C for up to 6 months. For extended storage, it is recommended to store at -80°C.
Haltbarkeit 6 months
Bilder des Herstellers

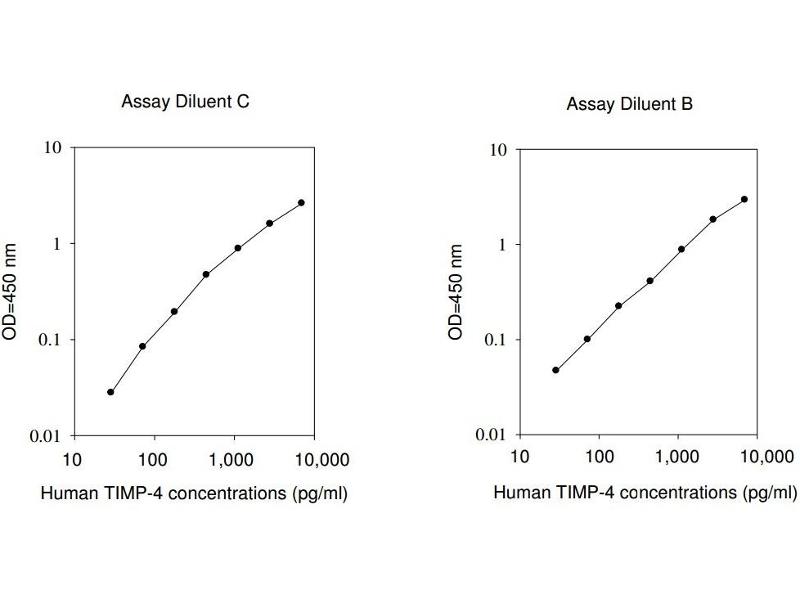

ELISA image for TIMP Metallopeptidase Inhibitor 4 (TIMP4) ELISA Kit (ABIN625101) TIMP Metallopeptidase Inhibitor 4 (TIMP4) ELISA Kit
Produkt verwendet in: Koob, Lim, Zabek, Massee: "Cytokines in single layer amnion allografts compared to multilayer amnion/chorion allografts for wound healing." in: Journal of biomedical materials research. Part B, Applied biomaterials, Vol. 103, Issue 5, pp. 1133-40, 2015 (PubMed).

Zhang, Ma, Yang, Long, Liu, Zhou: "Maternal plasma TIMP-4 levels combined with clinical risk factors for the early prediction of pregnancy-induced hypertension." in: Archives of gynecology and obstetrics, Vol. 292, Issue 5, pp. 1043-50, 2015 (PubMed).
