Rekombinanter RAD21 Antikörper (N-Term) (Sortase,His tag,AVI tag)

Produktnummer ABIN6731038

Es gibt 1 Publikation für dieses Produkt. Der Maus Monoklonal anti-RAD21 Antikörper wird verwendet zum Nachweis von RAD21 in Proben von Human und Maus. Er wurde validiert für WB und IF. Der Antikörper wurde zudem unabhängig validiert.

Kurzübersicht für Rekombinanter RAD21 Antikörper (N-Term) (Sortase,His tag,AVI tag) (ABIN6731038)

Target: RAD21 (RAD21 Homolog (RAD21))

Antikörpertyp: Recombinant Antibody

Reaktivität: Human, Maus

Wirt: Maus

Klonalität: Monoklonal

Konjugat: Dieser RAD21 Antikörper ist konjugiert mit Sortase,His tag,AVI tag

Applikation: Western Blotting (WB), Immunofluorescence (IF)

Produktdetails anti-RAD21 Antikörper (Sortase,His tag,AVI tag)

Bindungsspezifität: N-Term

Verwendungszweck: AbFlex Rad21 antibody (rAb)

Marke: AbFlex®

Produktmerkmale: AbFlex antibodies are recombinant antibodies (rAbs) that have been generated using defined DNA sequences to produce highly specific, reproducible antibodies. Each AbFlex antibody contains a 6xHis Tag, a Biotinylation Tag for enzymatic biotin conjugation using the biotin ligase, BirA, and a sortase recognition motif (LPXTG) to attach a variety of labels directly to the antibody including fluorophores, enzymatic substrates (HRP, AP), peptides, drugs as well as solid supports.

Aufreinigung: Protein A Chromatography

Immunogen: This antibody was raised against recombinant protein corresponding to the N-terminal half of mouse Rad21.

Isotyp: IgG2a

Anwendungsinformationen

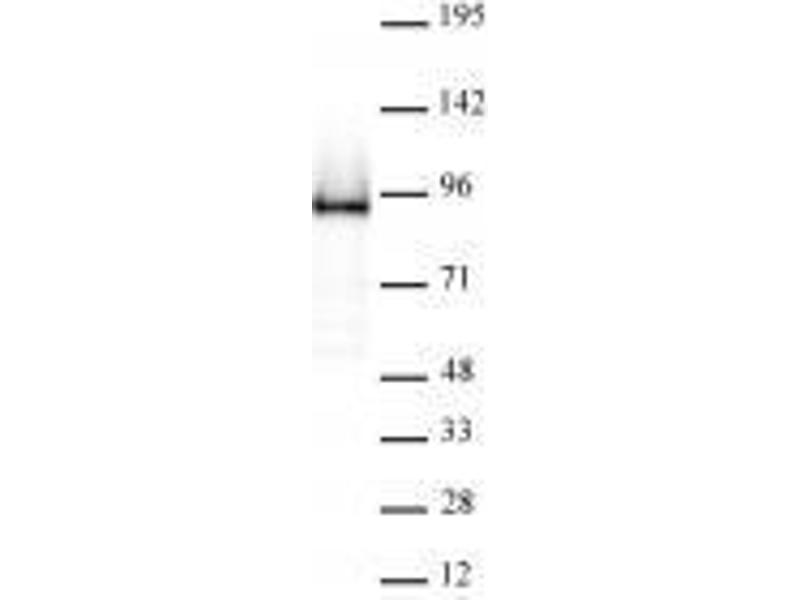

Applikationshinweise: IF: 0.25 - 1 μg/mL WB*: 0.5- 2 μg/mL *Note: many chromatin-bound proteins are not soluble in a low salt nuclear extract and fractionate to the pellet. Therefore, we recommend a High Salt / Sonication Protocol when preparing nuclear extracts for Western Blot. AbFlex recombinant antibodies are genetically derived from DNA sequences of parental hybridoma clones. For details on the parental clone, see Catalog No. 39383.

Kommentare:

This recombinant antibody has been generated using defined DNA sequences to achieve high specificity and high reproducibility. The unique advantages of this antibody are its flexible labeling and purification options as it contains a sortase recognition motif (LPXTG) to covalently add fluorophores, enzymatic substrates (HRP, AP...etc), peptides, DNA, drugs or other labels to the antibody in a directed and reproducible manner. Every antibody also contains a 6xHis Tag, which can be used with nickel-based purification systems, and a Biotinylation Tag sequence for enzymatic biotin conjugation using the biotin ligase, BirA.

Beschränkungen: Nur für Forschungszwecke einsetzbar

Independent Validation (CUT&RUN)

Validierung #104617 (Cleavage Under Targets and Release Using Nuclease)

by: Cantù Lab, Gene Regulation during Development and Disease, Linköping University

No.: #104617

Datum: 06.12.2024

Antigen: RAD21

Validierte Anwendung: Cleavage Under Targets and Release Using Nuclease

Positivkontrolle: Anti H3K4me (antibodies-online, ABIN3023251)

Negativkontrolle: Guinea Pig anti-rabbit IgG (antibodies-online, ABIN101961)

Bewertung:

Passed.

Validierungsbilder

Library profiles comparing fragment size distributions on an E-Gel EX 2% agarose gel (Thermo Fisher). Fragments obtained from CUT&RUN using RAD21 ABIN6731038 (right) after library preparation, compared to the E-Gel Sizing DNA Ladder (Thermo Fisher) (left).

1. Alignment tracks from CTCF CUT&RUN in HEK293T cells. 2. Alignment tracks from CUT&RUN targeting RAD21 in HEK293T cells using ABIN6731038 antibody showing the FBRS locus. 3. RefSeq Genes.

Protokoll

Primärantikörper: ABIN6731038

Full Protocol:

• Cell harvest and nuclear extraction
  • Harvest 250,000 HEK293T cells per antibody
  • Centrifuge cell solution 5 min at 600 x g at RT.
  • Remove the liquid carefully.
  • Gently resuspend cells in 2 mL of Nuclear Extraction Buffer (20 mM HEPES-KOH pH 8.2, 20% Glycerol, 0,05% IGEPAL, 0.5 mM Spermidine, 10 mM KCl, Roche Complete Protease Inhibitor EDTA-free).
  • Move the solution to a 2 mL centrifuge tube.
  • Pellet the nuclei 800 x g for 5 min.
  • Repeat the NE wash twice for a total of three washes.
  • Resuspend the nuclei in 40 µL NE Buffer per sample.
• Concanavalin A beads preparation
  • Prepare one 2 mL microcentrifuge tube.
  • Gently resuspend the magnetic Concanavalin A Beads (antibodies-online, ABIN6923139).
  • Pipette 10 µL Con A Beads slurry for each sample into the 2 mL microcentrifuge tube.
  • Place the tube on a magnet stand until the fluid is clear. Remove the liquid carefully.
  • Remove the microcentrifuge tube from the magnetic stand.
  • Pipette 1 mL Binding Buffer (20 mM HEPES pH 7.5, 10 mM KCl, 1 mM CaCl2, 1 mM MnCl2) into the tube and resuspend ConA beads by gentle pipetting.
  • Spin down the liquid from the lid with a quick pulse in a table-top centrifuge.
  • Place the tubes on a magnet stand until the fluid is clear. Remove the liquid carefully.
  • Remove the microcentrifuge tube from the magnetic stand.
  • Repeat the wash twice for a total of three washes.
  • Gently resuspend the ConA Beads in 44ul binding buffer
• Nuclei immobilization – binding to Concanavalin A beads
  • Carefully vortex the nuclei suspension and add 44 µL of the Con A beads in Binding Buffer to the cell suspension for each sample.
  • Close tube tightly incubates 10 min at 4 °C.
  • Put the 2 mL tube on the magnet stand and when the liquid is clear remove the supernatant.
  • Resuspend the beads in 1 mL of EDTA wash buffer (20 mM HEPES pH 7.5, 150 mM NaCl, 0.5 mM Spermidine, Roche Complete Protease Inhibitor EDTA-free, 2mM EDTA)
  • Incubate 5 min at RT.
  • Place the tube on the magnet stand and when the liquid is clear remove the supernatant.
  • Resuspend the beads in 200µl of wash buffer (20 mM HEPES pH 7.5, 150 mM NaCl, 0.5 mM Spermidine, Roche Complete Protease Inhibitor EDTA-free) x each sample.
• Primary antibody binding
  • Divide nuclei suspension into separate 200 µL PCR tubes, one for each antibody.
  • Add 2 µL antibody (RAD21 ABIN6731038, anti-H3K4me positive control ABIN3023251, and guinea pig anti-rabbit IgG negative control antibody ABIN101961) to the respective tube, corresponding to a 1:100 dilution.
  • Incubate at 4 °C ON.
  • Place the tubes on a magnet stand until the fluid is clear. Remove the liquid carefully.
  • Remove the microcentrifuge tubes from the magnetic stand.
  • Wash with 200 µL of Wash Buffer using a multichannel pipette to accelerate the process.
  • Repeat the wash five times for a total of six washes.
• pAG-MNase Binding
  • Prepare a 1.5 mL microcentrifuge tube containing 200 µL of pAG mix per sample (200 µL of wash buffer + 120 ng pAG-MNase per sample)
  • Place the PCR tubes with the sample on a magnet stand until the fluid is clear. Remove the liquid carefully.
  • Remove tubes from the magnetic stand.
  • Resuspend the beads in 200 µL of pAG-MNase premix.
  • Incubate 30 min at 4 °C
  • Place the tubes on a magnet stand until the fluid is clear. Remove the liquid carefully.
  • Remove the microcentrifuge tubes from the magnetic stand.
  • Wash with 200 µL of Wash Buffer using a multichannel pipette to accelerate the process.
  • Repeat the wash five times for a total of six washes.
  • Resuspend in 100 µL of Wash Buffer.
• MNase digestion and release of pAG-MNase-antibody-chromatin complexes
  • Place PCR tubes on ice and allow to chill.
  • Prepare a 1.5 mL microcentrifuge tube with 102 µl of 2 mM CaCl2 mix per sample (100 µl Wash Buffer + 2 µL 100 mM CaCl2) and let it chill on ice.
  • Always in ice, place the samples on the magnetic rack and when the liquid is clear remove the supernatant.
  • Resuspend the samples in 100 µl of the 2 mM CaCl2 mix and incubate in ice for exactly 30 min.
  • Place the sample on the magnet stand and when the liquid is clear remove the supernatant.
  • Resuspend the sample in 50 µl of 1x Urea STOP Buffer (8.5 M Urea, 100 mM NaCl, 2 mM EGTA, 2 mM EDTA, 0,5% IGEPAL).
  • Incubate the samples 1h at 4°C.
  • Transfer the supernatant containing the pAG-MNase-bound digested chromatin fragments to fresh 200 µl PCR tubes.
• DNA Clean up (Mag-Bind® TotalPure NGS - M1378-01)
  • Take the Mag-Bind® TotalPure NGS beads (Omega Bio-Tek, M1378-01) from the storage and wait until they are RT.
  • Add 2x volume of beads to each sample (e.g. 100 µL of beads for 50 µL of sample).
  • Incubate the beads and the sample for 15 min at RT.
  • During incubation prepare fresh EtOH 80%.
  • Place the PCR tubes on a magnet stand and when the liquid is clear remove the supernatant.
  • Add 200 µl of fresh 80% EtOH to the sample without disturbing the beads (Important!!! Do NOT resuspend the beads or remove the tubes from the magnet stand or the sample will be lost).
  • Incubate 30 sec at RT.
  • Remove the EtOH from the sample.
  • Repeat the wash with 80% EtOH.
  • Resuspend the beads in 25 µL of 10 mM Tris.
  • Incubate the sample for 2 min at RT.
  • Repeat the 2x beads clean up as described before (this time with 50 µlL of beads for each sample).
  • Resuspend the beads + DNA in 20 µL of 10 mM Tris.
• Library preparation and sequencing
  • Prepare Libraries using KAPA HyperPrep Kit using KAPA Dual-Indexed adapters according to protocol.
  • Sequence samples on an Illumina NextSeq 500 sequencer, using a NextSeq 500/550 High Output Kit v2.5 (75 Cycles), 36bp PE.
• Peak calling
  • Trim reads using using bbTools bbduk (BBMap - Bushnell B. - sourceforge.net/projects/bbmap/) to remove adapters, artifacts and repeat sequences.
  • Aligned reads were mapped to the hg38 human genome using bowtie with options -m 1 -v 0 -I 0 -X 500.
  • Use SAMtools to convert SAM files to BAM files and remove duplicates.
  • Use BEDtools genomecov to produce Bedgraph files.
  • Call peaks using SEACR with a 0.001 threshold and the option norm stringent.

Handhabung

Format: Liquid

Buffer: Purified IgG in 140 mM Hepes, pH 7.5, 70 mM NaCl, 32 mM NaOAc, 0.035 % sodium azide, 30 % glycerol.

Konservierungsmittel: Sodium azide

Vorsichtsmaßnahmen: This product contains Sodium azide: a POISONOUS AND HAZARDOUS SUBSTANCE which should be handled by trained staff only.

Handhabung: Avoid repeated freeze/thaw cycles by aliquoting items into single-use fractions,Keep all reagents on ice when not in storage

Lagerung: -20 °C

Informationen zur Lagerung: Some products may be shipped at room temperature. This will not affect their stability or performance. Avoid repeated freeze/thaw cycles by aliquoting items into single-use fractions for storage at -20°C for up to 2 years. Keep all reagents on ice when not in storage.

Haltbarkeit: 24 months

Referenzen für anti-RAD21 Antikörper (Sortase,His tag,AVI tag) (ABIN6731038)

Nordin, Chakraborty, Jonasson, Dano, Zambanini, Pagella, Remeseiro, Cantù: "Wnt signaling activation induces CTCF binding and loop formation at cis-regulatory elements of target genes." in: Genome research, Vol. 35, Issue 8, pp. 1701-1716, (2025) (PubMed).

Details zu RAD21

Target: RAD21 (RAD21 Homolog (RAD21))

Andere Bezeichnung: Rad21

Hintergrund: AbFlex Rad21 antibody was expressed as full-length IgG with mouse immunoglobulin heavy and light chains (IgG2a isotype) in mammalian 293 cells Rad21 (HR21, MCD1, NXP1, hHR21) is highly similar to the gene product of S. pombe Rad21, a gene involved in the repair of DNA double-strand breaks, as well as in chromatid cohesion during mitosis. Rad21 is a nuclear phosphoprotein, which becomes hyperphosphorylated in cell cycle M phase. The highly regulated association of Rad21 with mitotic chromatin specifically at the centromere region suggests its role in sister chromatid cohesion in mitotic cells.

Molekulargewicht: 100 kDa

NCBI Accession: NP_033035

Pathways: Positive Regulation of Endopeptidase Activity
