CytoSelect™ 24-Well Wound Healing Assay

BCA Fluorometric Cell Samples
Produktnummer ABIN2344870
  • Nachweismethode
    Fluorometric
    Applikation
    Biochemical Assay (BCA)
    Marke
    CytoSelect™
    Proben
    Cell Samples
    Produktmerkmale
    CytoSelect™ Wound Healing Assay Kit includes proprietary "wound field" inserts to assay the migratory and wound healing characteristics of cells. This Trial Size kit contains sufficient reagents for the evaluation of 6 samples. The insert is optimal for use with most cell types and experimental conditions. The 0.9 mm wound field generated is compatible for use with most microscopes and imaging systems.
    Bestandteile
    1. 24-well Wound Healing Assay Plate : One 24-well plate containing 6 wound field inserts
    2. Cell Stain Solution : One 4 mL bottle
    3. DAPI Fluorescence Stain (1000X) : One 10 μL vial
    4. Fixation Solution : Two 2 mL tubes
    Benötigtes Material
    1. Migratory cell lines and culture medium
    2. Light/Fluorescence microscope with DAPI filter (350nm/470nm)
    3. Imaging Software for measuring wound closure
    4. Forceps
    5. PBS
  • Applikationshinweise
    Optimal working dilution should be determined by the investigator.
    Kommentare

    • More consistent results well-to-well compared to homemade scratch assays
    • Useful for measuring cell migration, cell proliferation and wound closure
    • Inert inserts leave no residues that could impede proliferation or migration of cells

    Protokoll
    The CytoSelect™ 24-well Wound Healing Assay Kit contains 2 x 24-well plates each containing 12 proprietary treated plastic inserts. The inserts create a wound field with a defined gap of 0.9mm for measuring the migratory and proliferation rates of cells. Migratory cells are able to extend protrusions and ultimately invade and close the wound field. Cell proliferation and migration rates can be determined using manual fixing and microscopic imaging. A fixing solution is provided for stopping cells at specific time points. Cell stain and DAPI stain are also provided for viewing results with light and fluorescence microscopy.
    Testdurchführung

    I. Cell Migration

    1. Allow the 24-well plate with CytoSelect™ Wound Healing Inserts to warm up at room temperature for 10 minutes. 4
    2. Using sterile forceps, orient the desired number of inserts in the plate wells with their "wound field" aligned in the same direction. Ensure that the inserts have firm contact with the bottom of the plate well. Note: It is recommended that all samples be tested in triplicate.
    3. Create a cell suspension containing 0.5-1.0 x 106 cells/mL in media containing 10 % fetal bovine serum (FBS).
    4. Add 500 μL of cell suspension to each well by carefully inserting the pipet tip through the open end at the top of the insert. For optimal cell dispersion, add 250 μL of cell suspension to either side of the open ends at the top of the insert. Take care to avoid bumping and moving the inserts. Note: Adding too much liquid to the well can decrease the quality of the wound field.
    5. Incubate cells in a cell culture incubator overnight or until a monolayer forms.
    6. Carefully remove the insert from the well to begin the wound healing assay. Use sterile forceps to grab and lift the insert slowly from the plate well. Avoid twisting the insert as this will damage the wound field.
    7. Slowly aspirate and discard the media from the wells. Wash wells with media to remove dead cells and debris. Finally, add media to wells to keep cells hydrated.
    8. Visualize wells under a light microscope. Repeat wash if wells still have debris or unattached cells.
    9. When washing is complete, add media with FBS and/or compounds to continue cell culture and wound healing process. Agents that inhibit or stimulate cell migration can be added directly to the wells.
    10. Incubate cells in a cell culture incubator.
    11. For best results, use a reticle with micrometer measurements to create a defined surface area in order to monitor the closing, or "healing" of the wound. Focus on the center of the wound field. Create the defined surface area by multiplying the width of the wound field (0.9 mm) by the length. See the example in Figure 1 below. Figure 1: Example of Wound Field Surface Area. 5

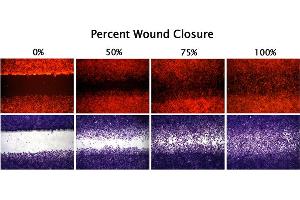

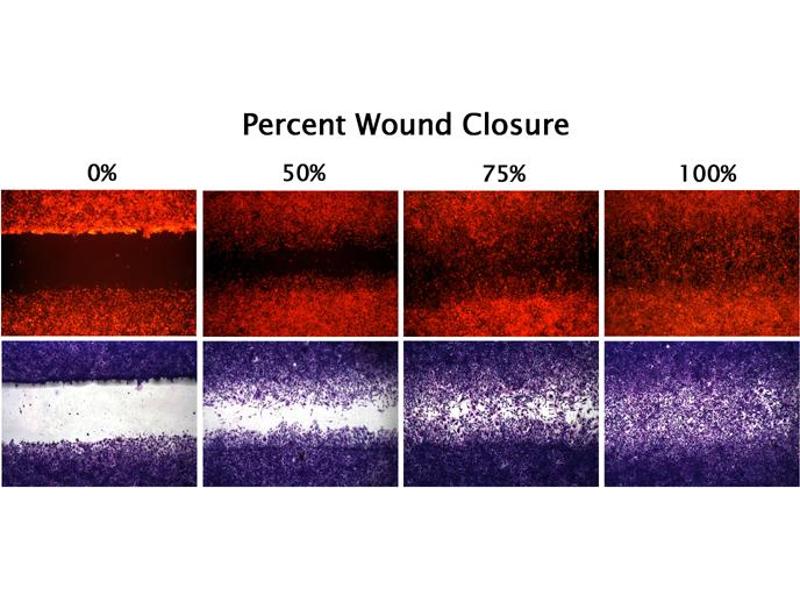

    12. Monitor the wound closure with a light microscope or imaging software. Measure the percent closure or the migration rate of the cells into the wound field. Wound healing results can be visualized with phase contrast, DAPI fluorescence labeling, or cell staining.

    II. (Optional) DAPI Fluorescence Labeling

    1. Cells can be fixed by removing media and adding 0.5 mL of Fixing Solution to each well.
    2. Allow the cells to fix for 10 minutes at room temperature. Aspirate and discard the solution.
    3. Carefully wash each well 3X with PBS.
    4. Dilute DAPI 1:1000 in PBS.
    5. Add 0.5 mL of DAPI solution to each well to be stained. Incubate 15 minutes at room temperature.
    6. Carefully wash each well 3X with PBS. Add 1 mL PBS to each well to keep cells hydrated.

    III. (Optional) Cell Staining

    1. Remove the media or solution and add 400 μL of Cell Stain Solution to each well.
    2. Allow the stain to incubate with the cells for 15 minutes at room temperature. Aspirate and discard the solution.
    3. Carefully wash each stained well 3X with deionized water. Discard washes and allow cells to dry at room temperature. Calculation of Results Percent Closure:
      1. Determine the surface area of the defined wound area (see Figure 1). Total Surface Area = 0.9mm x length
      2. Determine the surface area of the migrated cells in to the wound area. Migrated Cell Surface Area = length of cell migration (mm) x 2 x length
      3. Percent Closure (%) = Migrated Cell Surface Area / Total Surface Area x 100 Migration Rate: Determine the migration rate of cells into the defined wound area: Migration Rate = length of cell migration (nm) / migration time (hr). 6

    Beschränkungen
    Nur für Forschungszwecke einsetzbar
  • Lagerung
    4 °C
    Informationen zur Lagerung
    Upon receipt, transfer the DAPI Fluorescence Stain to -20°C. Store all components at 4°C.
  • Kang, Zhang, Wang, Liu, Zhao, Yang, Li: "Puerarin inhibits M2 polarization and metastasis of tumor-associated macrophages from NSCLC xenograft model via inactivating MEK/ERK 1/2 pathway." in: International journal of oncology, Vol. 50, Issue 2, pp. 545-554, (2017) (PubMed).

    Knudson, Pritzl, Saxena, Altman, Daniels, Teixeiro: "NFκB-Pim-1-Eomesodermin axis is critical for maintaining CD8 T-cell memory quality." in: Proceedings of the National Academy of Sciences of the United States of America, Vol. 114, Issue 9, pp. E1659-E1667, (2017) (PubMed).

    Seif, Hoppstädter, Breinig, Kiemer: "Yeast-mediated mRNA delivery polarizes immuno-suppressive macrophages towards an immuno-stimulatory phenotype." in: European journal of pharmaceutics and biopharmaceutics : official journal of Arbeitsgemeinschaft für Pharmazeutische Verfahrenstechnik e.V, (2017) (PubMed).

    Guerra, Rose, Hematti, Kao: "Minocycline enhances the mesenchymal stromal/stem cell pro-healing phenotype in triple antimicrobial-loaded hydrogels." in: Acta biomaterialia, Vol. 51, pp. 184-196, (2017) (PubMed).

    Lo, Dawson, Young, Ko, Hau, Lo: "Activation of the FGFR1 signalling pathway by the Epstein-Barr virus-encoded LMP1 promotes aerobic glycolysis and transformation of human nasopharyngeal epithelial cells." in: The Journal of pathology, Vol. 237, Issue 2, pp. 238-48, (2016) (PubMed).

    Lakatos, Kalomoiris, Merkely, Nolta, Fierro: "Mesenchymal Stem Cells Respond to Hypoxia by Increasing Diacylglycerols." in: Journal of cellular biochemistry, Vol. 117, Issue 2, pp. 300-7, (2016) (PubMed).

    Mazumder, Dwivedi, du Preez, du Plessis: "In vitro wound healing and cytotoxic effects of sinigrin-phytosome complex." in: International journal of pharmaceutics, Vol. 498, Issue 1-2, pp. 283-93, (2016) (PubMed).

    Fernández, Rouzard, Voronkov, Huber, Webb, Stock, Stock, Gordon, Pérez: "In vitro and clinical evaluation of SIG1273: a cosmetic functional ingredient with a broad spectrum of anti-aging and antioxidant activities." in: Journal of cosmetic dermatology, (2016) (PubMed).

    Wang, Wang, Li, Liu, Cao, Yu, Zhang, Tan, Xiang, Feng: "Up-Regulation of PAI-1 and Down-Regulation of uPA Are Involved in Suppression of Invasiveness and Motility of Hepatocellular Carcinoma Cells by a Natural Compound Berberine." in: International journal of molecular sciences, Vol. 17, Issue 4, pp. 577, (2016) (PubMed).

    Huang, Hsu, Chen, Chow, Wang, Shyu, Lu: "Negative pressure induces p120-catenin-dependent adherens junction disassembly in keratinocytes during wound healing." in: Biochimica et biophysica acta, Vol. 1863, Issue 9, pp. 2212-20, (2016) (PubMed).

    Maeda, Ding, Yoshimitsu, Kuwahata, Miyazaki, Tsukasa, Hayashi, Shinchi, Natsugoe, Takao: "CD133 Modulate HIF-1α Expression under Hypoxia in EMT Phenotype Pancreatic Cancer Stem-Like Cells." in: International journal of molecular sciences, Vol. 17, Issue 7, (2016) (PubMed).

    Qian, Wang, Magliocca, Hu, Nannapaneni, Kim, Chen, Sun, Shin, Saba, Chen: "Human papillomavirus oncoprotein E6 upregulates c-Met through p53 downregulation." in: European journal of cancer (Oxford, England : 1990), Vol. 65, pp. 21-32, (2016) (PubMed).

    Anderson, Poudel, Roh-Johnson, Brabletz, Yu, Borenstein-Auerbach, Grady, Bai, Moens, Eisenman, Conacci-Sorrell: "MYC-nick promotes cell migration by inducing fascin expression and Cdc42 activation." in: Proceedings of the National Academy of Sciences of the United States of America, Vol. 113, Issue 37, pp. E5481-90, (2016) (PubMed).

    Zhang, Niu, Chong, Huang, Chu, Xie, Jiang, Peng: "Porous microspheres as promising vehicles for the topical delivery of poorly soluble asiaticoside accelerate wound healing and inhibit scar formation in vitro &in vivo." in: European journal of pharmaceutics and biopharmaceutics : official journal of Arbeitsgemeinschaft für Pharmazeutische Verfahrenstechnik e.V, Vol. 109, pp. 1-13, (2016) (PubMed).

    Hung, Hsu, Chen, Chang, Lee: "Cyclophosphamide promotes breast cancer cell migration through CXCR4 and matrix metalloproteinases." in: Cell biology international, Vol. 41, Issue 3, pp. 345-352, (2016) (PubMed).

    Tansi, Rüger, Böhm, Kontermann, Teichgraeber, Fahr, Hilger: "Potential of activatable FAP-targeting immunoliposomes in intraoperative imaging of spontaneous metastases." in: Biomaterials, Vol. 88, pp. 70-82, (2016) (PubMed).

    Chi, Kim, Seo, Seo, Lee, Kwon, Lee, Chang: "P70S6K and Elf4E Dual Inhibition Is Essential to Control Bladder Tumor Growth and Progression in Orthotopic Mouse Non-muscle Invasive Bladder Tumor Model." in: Journal of Korean medical science, Vol. 30, Issue 3, pp. 308-16, (2015) (PubMed).

    Otsubo, Hagiwara, Tamura-Nakano, Sezaki, Miyake, Hinohara, Shimizu, Yamada, Dohi, Kawamura: "Aberrant DNA hypermethylation reduces the expression of the desmosome-related molecule periplakin in esophageal squamous cell carcinoma." in: Cancer medicine, (2015) (PubMed).

    Yamada, Ohno, Kitamura, Sasabe, Yamamoto: "SPARC is associated with carcinogenesis of oral squamous epithelium and consistent with cell competition." in: Medical molecular morphology, Vol. 48, Issue 3, pp. 129-37, (2015) (PubMed).

    Kawai, Katagiri, Osugi, Sugimura, Hibi, Ueda: "Secretomes from bone marrow-derived mesenchymal stromal cells enhance periodontal tissue regeneration." in: Cytotherapy, Vol. 17, Issue 4, pp. 369-81, (2015) (PubMed).

  • Hintergrund
    Wounded tissue initiates a complex and structured series of events in order to repair the damaged region. These events may include increased vascularization by angiogenic factors, an increase in cell proliferation and extracellular matrix deposition, and infiltration by inflammatory immune cells as part of the process to destroy necrotic tissue. The wound healing process begins as cells polarize toward the wound, initiate protrusion, migrate, and close the wound area. These processes reflect the behavior of individual cells as well as the entire tissue complex. Wound healing assays have been employed by researchers for years to study cell polarization, tissue matrix remodeling, or estimate cell proliferation and migration rates of different cells and culture conditions. Wound healing assays have been used to study cell polarity and actin cytoskeletal structure regulation through the role of Rho family GTPases, microtubule and Golgi apparatus orientation, the role of p53 in cell migration, as well as other physiological processes. These assays typically involve culturing a confluent cell monolayer and then displacing or destroying a group of cells by scratching a line through the monolayer. The open gap created by this "wound" is then inspected microscopically over time as the cells move in and fill the damaged area. This "healing" effect can take several hours to several days depending on the cell type, conditions, and the surface area of the "wounded" region. The disadvantage of these "scratch wound" assays is the lack of a defined wound surface area, or gap between cells. These wounds are varying sizes and widths, which inhibits consistent results and creates variation from well to well. In addition, the "scratch wound" assay often causes damage to the cells at the edge of the wound, which can prevent cell migration into the wound site and healing. Our CytoSelect™ Wound Healing Assay Kit overcomes this inconsistency by providing proprietary treated inserts that can generate a defined wound field or gap. Cells are cultured until they form a monolayer around the insert. The insert is removed, leaving a precise 0.9 mm open "wound field" between the cells. Cells can be treated and monitored at this point for migration and proliferation into the wound field. Progression of these events can be measured by imaging samples fixed at specific time points or time-lapse microscopy.
